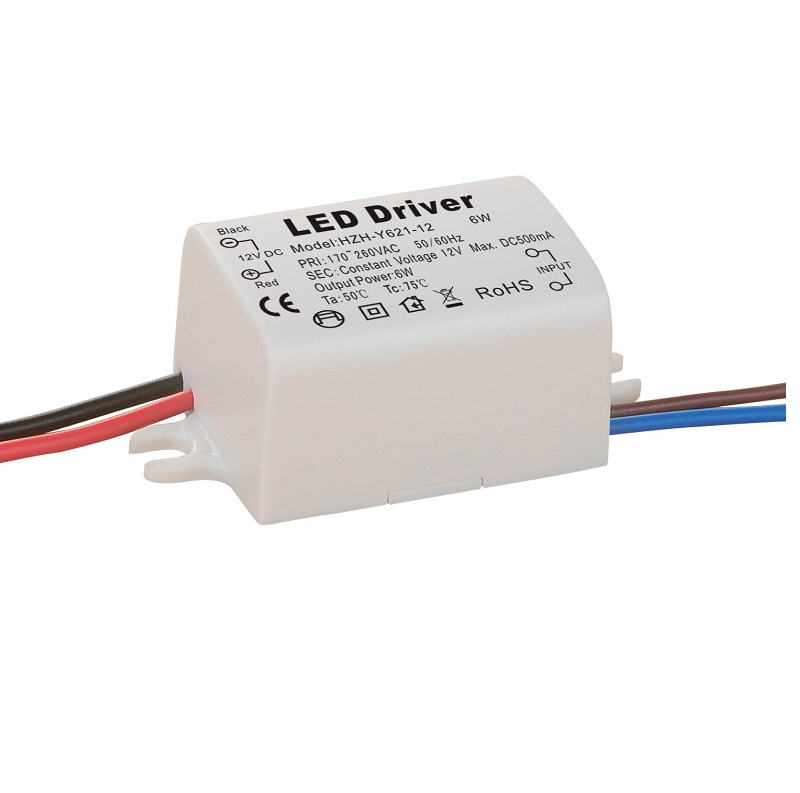

LED driver 6W
LED driver 6W

 Model No.: HZH-Y621
 Dimensions: (L) 52mm x (W) 27mm x (H) 21.5mm
 Insulation: ClassⅡ
 Supply voltage: 170-260V~ 50/60Hz
 Output voltage: 12V dc SELV (Self Extra Low Voltage)
 Min/max loading: 0 ~6W  0.5A
 Start delay (cold): approx 0.5 second
 Storage temperature: -200C ~ +800C

Max case temperature: tc700C
Ambient temperature: -50C < Ta< +400C
Case material: PC
Flammability: Withstands 6500C Glow wire test
Min/max length to lamp(s): 20cm < L< 15m
Ingress protection: IP20
Protection: overload, short circuit and in-inline fuses
Guarantee: 1 years
