Common LED dimmer

LED dimmer with synchronization function SZ100

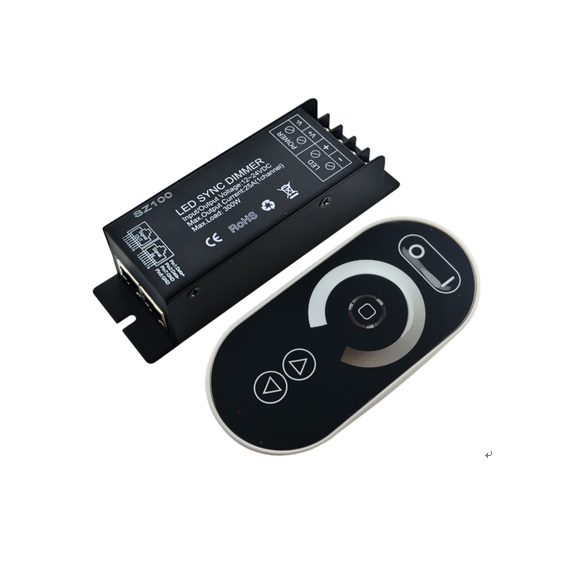

LED dimmer with synchronization function SZ100


SZ100, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt full touch RF remote control. 5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value. Particularly, there is a sense light in the remote control center. It shows the exactly light which was be touched. As the led strip is the same brightness level. Further, there are 3 dynamic modes in the mode button, and the speed is adjustable. In order to achieve the market need, the synchronization work of more lamps, it is designed the conjunction-sync-work function with RJ45 connecter, user-friendly.


Technical parameters:

-      Working temperature: - 20-60℃

-      Supply voltage: DC12V~24V

-      Output: 1 channel

-      Connecting mode: common anode

-      Output gray: 256 levels

-      Output current: <25A*1CH

-      Output power: 12V:<300W,  24V:<600W

-      Frequency of RF remote control: 433.9MHz

-      External dimension: L127*W41*H32 (mm)

-      Packing size: L147*W85*H73 (mm)

-      Net weight: 280g

-      Gross weight: 340g

For more specification information, please contact us.
